Introduction

AMD recently unleashed the new mid-range videocards of the HD4xx0 series of the Radeon family of video cards. Unlike nVidia, who started their GeForce 9×000 series at the mid-range level, AMD is following the success of the higher-end Hd48x0 cards with several mainstream cards, including the Radeon HD4650 and HD4550.

The folks at Sapphire were recently kind enough to send us an overclocked sample of one of these mid-range cards, the Radeon HD4650. Sapphire’s overclocked Radeon HD4650 features 512MB of GDDR3, 320 Stream processors, and a 700MHz memory clock. BIOSLEVEL.com will look at how this card fairs against its older brothers, as well as nVidia’s mainstream offerings from the 9×00 family of GeForce cards.

Packaging and Appearance

The Radeon HD4650 shipped to us in a box roughly half the size of that of their high-end cards we’ve seen in the past. The card’s title is printed nice and large, and a cute female with a rather large sword takes up the rest of the box’s front side. Along with this are the various certifications, as well as Sapphire’s improvements such as overclocked speeds and 512MB of GDDR3.

The back of the box lists several more features and awards, as well as the fact that the cards plays nicely with Vista.

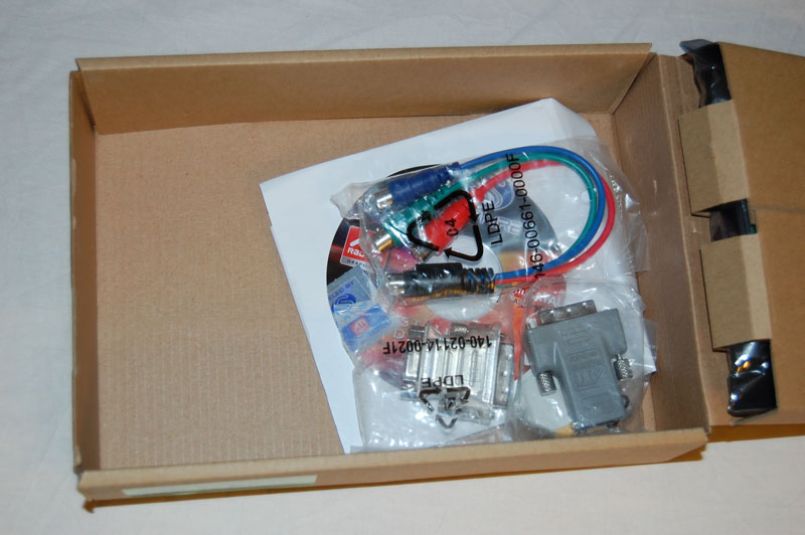

Inside, I found the card packed in nice and securely in a cardboard box. Also inside were a driver CD, component cable, HDMI dongle, and a VGA dongle.

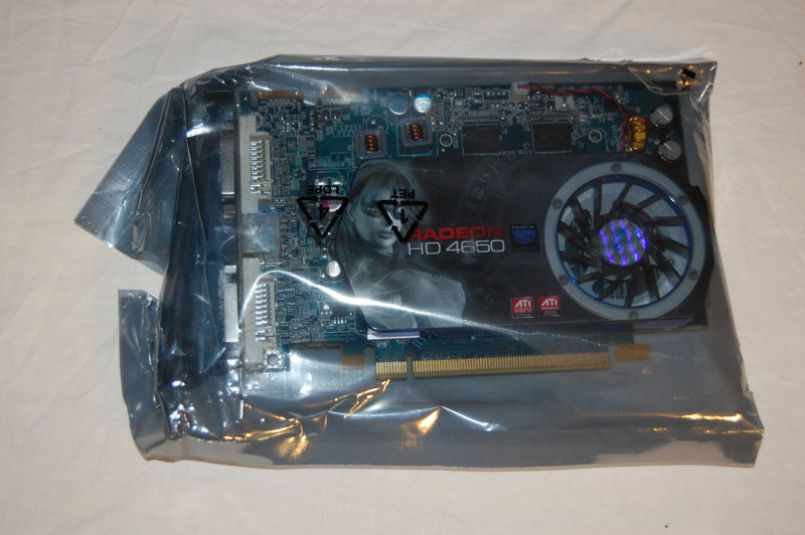

The card itself came wrapped up in the typical anti-static wrap.

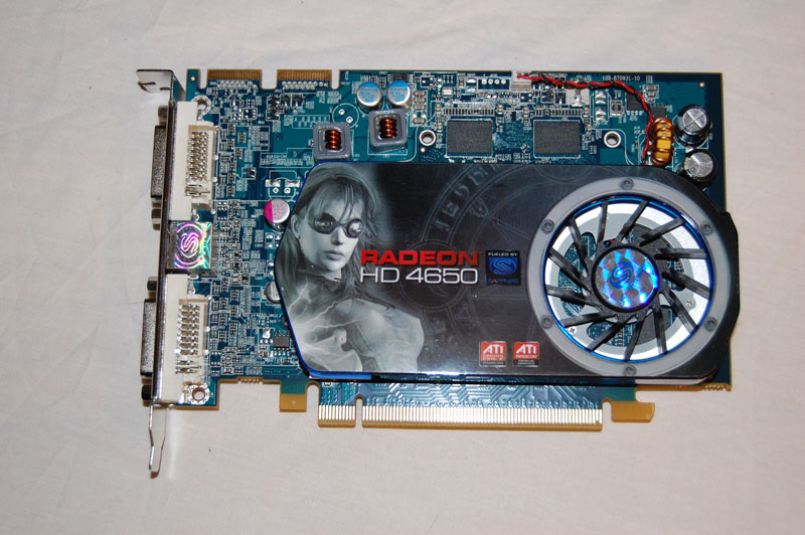

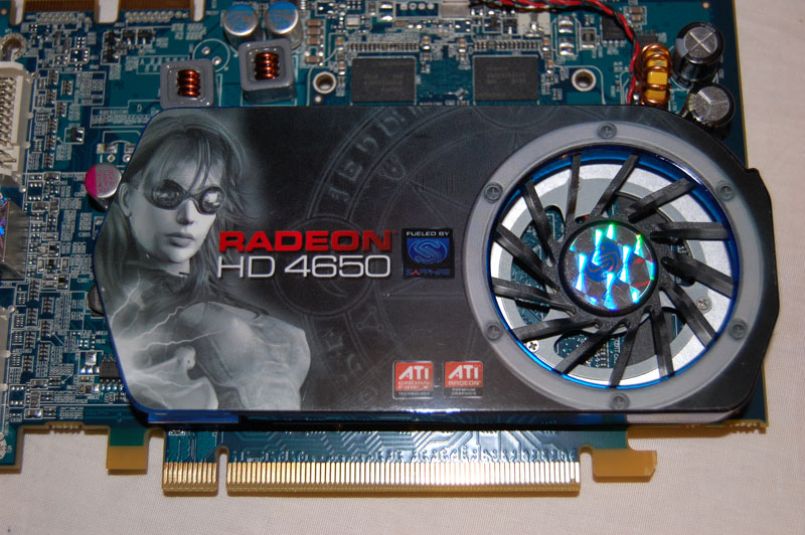

For a mid-range card, I can’t help but call the card sexy. The first thing that stuck out to me was the heatsink and fan, as this isn’t something I’m used to seeing on anything but high-end cards. Alas, even today’s mid-range GPUs require active cooling.

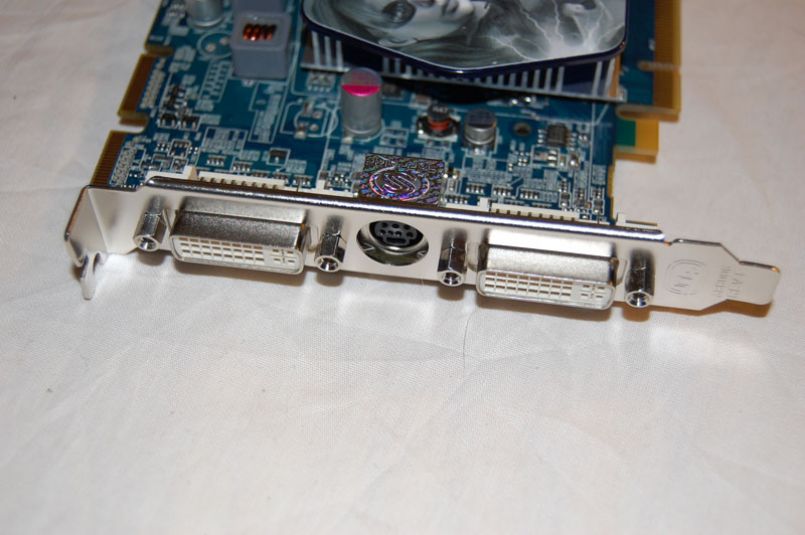

The card also neglects any VGA ports and instead features two DVI ports. I’d actually like to see some DisplayPort cards begin to be featured on today’s graphics cards.

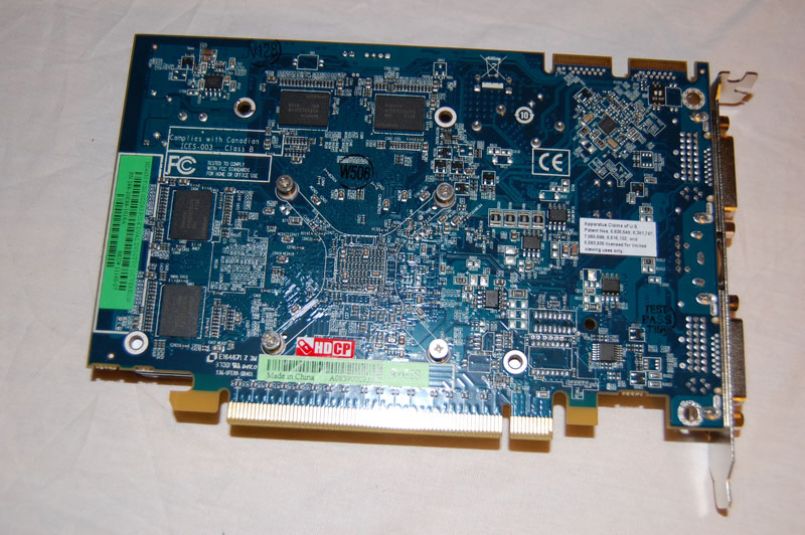

The back of the card doesn’t necessarily reveal anything special.

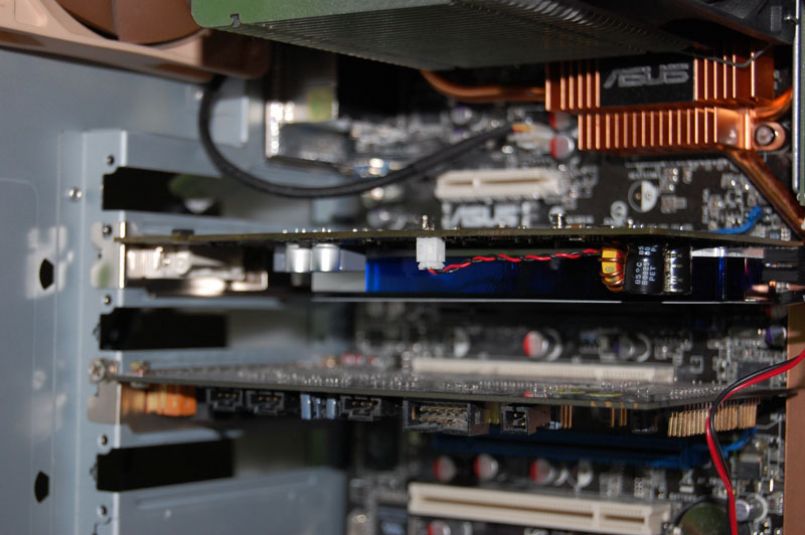

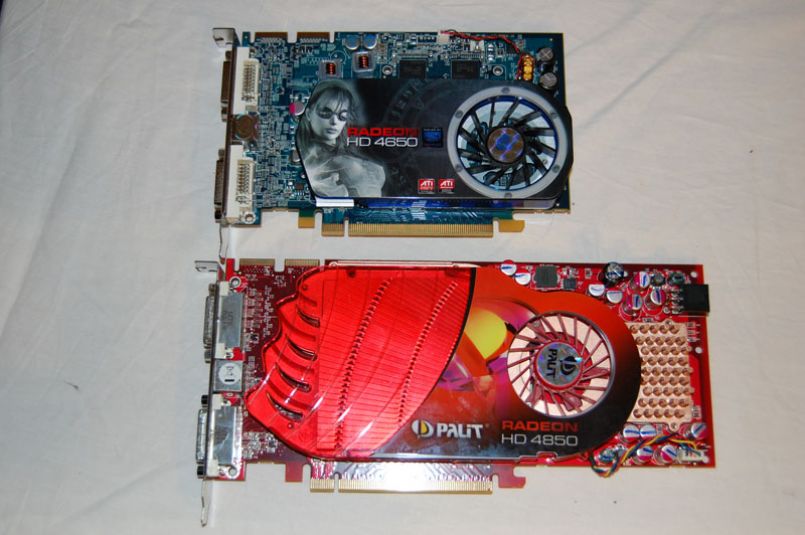

The Radeon HD4650 is also roughly three inches shorter than its older brother, the Radeon HD4850.

Features

• DirectX 10.1 & PCI Express 2.0 support
• 320 stream processing units, 128-bit memory interface
• 24x custom filter anti-aliasing (CFAA) and high performance anisotropic filtering
• Dual mode ATI CrossFireX multi-GPU support for highly scalable performance
• Dynamic geometry acceleration
• Game physics processing capability
• ATI Avivo HD video and display technology
• Unified Video Decoder 2 (UVD 2) for Blu-ray and HD Video
• Accelerated Video Transcoding(AVT)
• DVD Upscaling, Dynamic Contrast, Built-in HDMI with 7.1 surround sound support

Specifications

• I/O Output: Dual DL-DVI-I+HDTV

It’s exciting to note that an audio signal can be carried across the DVI port, making for easy connectivity to HDMI receivers and televisions. Another high point is that the Radeon HD4650 can be used in CrossFireX, supporting up to four GPUs in the same system.

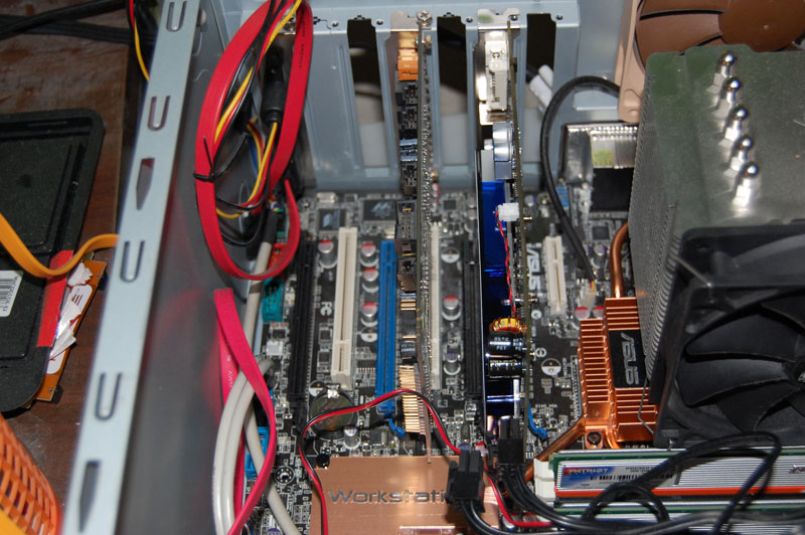

Installation

There wasn’t much to the installation of the Radeon HD4650. The card merely requires an unused PCI-Express x16 slot, preferably of the 2.0 variety. I’m happy to report that the Radeon HD4650 does not require a PCI-Express power connection. This could be a killer card for many low-powered systems.

Test System

I’m straying a little from my usual bench system due to some flaky hardware. This time around, I’ll be using an Intel Core2 Quad system. Despite a different system, the system will still be running both Windows Vista Business 64-bit with Service Pack 1 and Gentoo Linux 2008.0 64-bit. I’ll look at some of the latest games in Windows, and look at a few similar benchmarks in Linux including results from the Phoronix Test Suite.

That said, I’ll be able to compare the Radeon HD4650 against several videocards BIOSLEVEL has reviewed in the past, but I’ll have to be careful with any conclusions due to the fact that I’m using different hardware. Let’s get started with the Windows benchmarks. I’ll be looking at performance in Cinebench, 3dMark06 and Vantage, Unreal Tournament 2004, Unreal Tournament 3, Crysis, Quake 4, and Half-Life 2.

Windows Benchmarks

I started off the benchmarking process with some of our typical gaming benchmarks. Once again, I’m testing with Windows Vista 64-bit with Service Pack 1. As we’ve seen with previous reviews, Windows Vista really hits hard when it comes to gaming performance. The 32-bit version shows decrease in FPS in most games, but the 64-bit version shows an even greater decrease. Many of these cards we test with are capable of much higher framerates, but, well… it’s 64-bit Vista.

I have some animosity towards Vista, having lost my workstation’s
hard drive a few months ago. In the future, BIOSLEVEL.com may try to deviate away from Windows benchmarks all together. This will both increase the focus of our site, as well as giving us more time to work with the products in Linux while under deadlines.

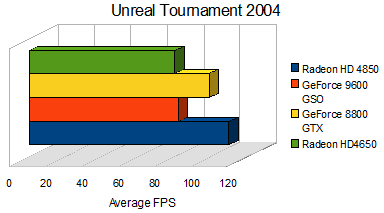

Unreal Tournament 2004

Since a Linux port of Unreal Tournament 3 has yet to be released for Linux, I use Unreal Tournament 2004 as a benchmark to compare Linux and Windows performance from videocards and processors. Although an older game, the framerate is still a good determining factor of how good a videocard is. I tested Unreal Tournament 2004 with everything set the maximum settings, at our default resolution, 1280×1024. I’m also using the OpenGL rendering engine, as that is the only available engine in Linux. It’s important to note that with Vista, users are stuck with OpenGL 1.5. Higher versions are merely emulated.

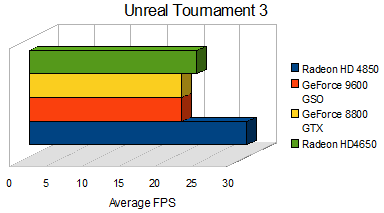

Unreal Tournament 3

Despite there not yet being a Linux port, Unreal Tournament 3 is one of the latest PC games out and uses the powerful Unreal Engine 3. Games such as Bioshock, Turok, and others also use this engine, making Unreal Tournament 3 a great benchmark to give an idea how these games will perform as well. This game is using the DirectX 10 engine.

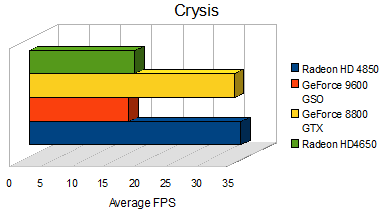

Crysis

Is one of the latest, cutting-edge games. Additionally, Crysis has a 64-bit port whereas Unreal Tournament 3 does not. I found gameplay to be mostly unplayable with anything higher than the default medium settings. I’m attributing this to an issue with the 64-bit version of Vista. Microsoft’s 64-bit operating system just doesn’t seem ready for the prime time yet. This is another DirectX 10 game.

Windows Benchmarks, Continued

Quake 4

Like Unreal Tournament 2004, Quake 4 is a slightly older engine. It remains relevant in that many games still use the engine such as Doom 3 and Quake Wars, and it also has a Linux port. Quake 4 was benchmarked using the highest settings available. The game utilizes OpenGL in both Linux and Windows.

Half-Life 2

Half-Life 2 remains one of the most popular game engines due to the various “Source” games Valve has released, such as Counter-Strike: Source. Additionally, many incremental updates have been added to the game with the episode-style updates Valve released for the game. Half-Life 2 was benchmarked with both Episodes installed, and all settings set to the maximum available.

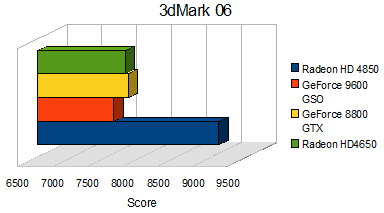

3dMark06

The benchmark is about two years old now, but still an effective way to look at a video card’s performance.

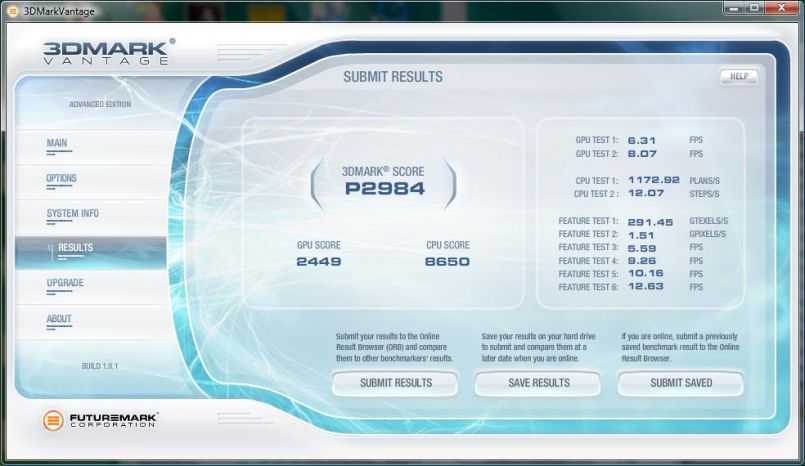

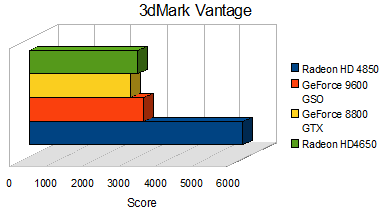

3dMark Vantage

Futuremark’s latest gaming benchmark is the pinnacle of gaming benchmarks and technology, as it may very well bring any setup to its very knees. Through a series of DirectX 10.1, Physics, and CPU tests, 3dMark Vantage measures every ounce of performance that a system is capable of, in every area the latest games utilize.

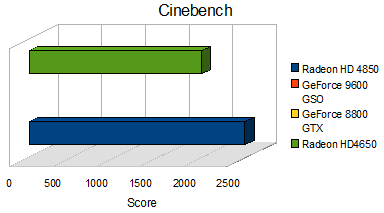

Cinebench

I’ve decided to add a new Windows benchmark to the mix, Maxon Cinebench. Cinebench is based on Maxon’s Cinema 4D animation software, which is used extensively by studios and production houses worldwide for 3D content creation. On top of this, Maxon has a 64-bit version of Cinebench, perfect for my purposes. Cinebench tests a videocard’s OpenGL rendering performance.

Conclusion on Windows Benchmarks

The results are both surprising and disappointing at the same time. I was surprised at the card’s performance in Unreal Tournament 2004 and Unreal Tournament 3, but the scores from Futuremark’s 3dMark benchmarks were significantly lower than those of the GeForce 9600 GSO.

Performance in Windows isn’t horrible, and one must keep in mind that the Radeon HD4650 is priced lower than the GeForce 9600 in most markets.

Linux Benchmarks

As mentioned in previous reviews, I’m using Gentoo Linux 2008, mostly because I’m more comfortable in a Gentoo environment, but also because the software is compiled specifically to your machine’s specifications (or the best available for the machine, anyways). The operating system has been compiled as 64-bit, so it’ll be interesting to see how some of these benchmarks compare to their Windows counterparts.

For Linux, I’ll be look at Unreal Tournament 2004, Quake 4, glxgears, and Nexuiz. Nexuiz will be tested using the Phoronix Test Suite. The other games will be tested with the same settings as in Windows.

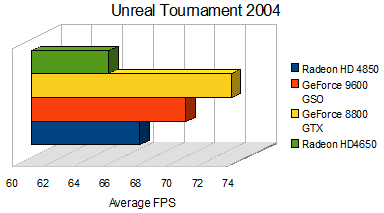

Unreal Tournament 2004

With the 64-bit version of UT2004 installed in Linux as well, I set the settings to the maximum and ran a botmatch on DM-Rankin.

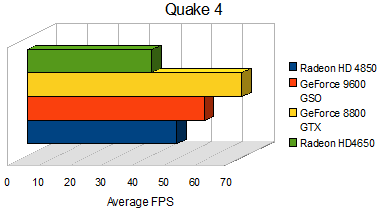

Quake 4

Much like the Windows version, I had everything set to the maximum.

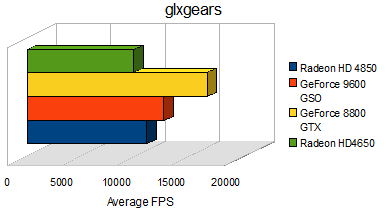

glxgears

glxgears is a simple benchmark included on most distros by default. Although not always a fantastic judge of performance, glxgears can give you a ballpark estimate on how well your video card will perform.

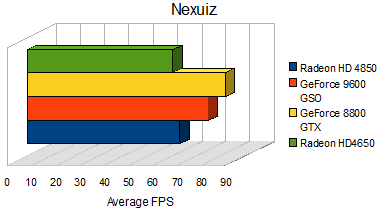

Nexuiz

Nexuiz is a popular open source first person shooter based on a modified (and very advanced) Quake 1 engine. Phoronix recently release a test suite, consisting of some of the benchmarks they commonly use when benchmarking hardware, and it’s all automated through PHP scripts. I opted to run Nexuiz through their benchmark system to standardize the results.

Conclusion on Linux Benchmarks

I have to say that the benchmark numbers in Linux came as a bit of a surprise. The card wasn’t far behind the Radeon HD4850, but still fell behind the numbers we got from the GeForce 9600 and 8800 series cards.

As always, it’s well known that that AMD’s Linux driver isn’t the best. For proof, once can compare similar games in bot Linux and Windows and see where the card falls behind in Linux. That’s partially the purpose of the review to look at how well AMD has implimented their driver.

Final Thoughts & Conclusion

For a mid-range video card, the overclocked Sapphire Radeon HD4650 pulls its weight. At a reasonable form factor and pricing point, the Radeon HD4650 packs a punch. Consider the fact that up to four HD4650 cards can be used in parallel with AMD’s CrossFireX technology to improve performance further.While the card did fall behind in performance to the GeForce 9600 GSO, the Radeon HD4650 offers a better pricing point, and also features some technologies not found in the GeForce 9600, such as DirectX 10.1 support.

Linux performance wasn’t particularly what I would have liked to have seen, but to be fair, it did perform as well as it performed in Windows. nVidia-based cards typically always perform above and beyond AMD cards in Linux, but this can usually be blamed on AMD’s graphics driver in Linux. AMD has promised further improvements to the drive, so it’s only a matter of time before we see equal performance in both Linux and Windows from ATI cards.

Sapphire definitely has a great mainstream card on their hands with the Radeon HD4650 overclocked. With th
e overclocked memory and GDDR3, the card is sure to outperform vanilla HD4650 models, and should be able to play many of today’s popular games at reasonable settings without giving up too much detail.

Pros

• PCI-Express 2.0 Support
• Great pricing point
• Factory overclocked and GDDR3 RAM
• HDCP / HDMI compliant for watching HD movies on HD displays
• Unique and efficient cooler
• No external power required

Cons

• Linux performance isn’t great
